Leon NCM Venice Plus Electric Bike

$2,495.00 $2,195.00

Description
Quality inspection and final adjustment:

Please note our NCM ebikes are professionally assembled and you don’t need to be at home to receive it, then build it yourself. You also get the first free service on the bike which is worth $50. We also customize the bike in ways you won’t be able to do if you buy direct from the distributors. When you have a problem with the bike you actually have a shop you can come to to get assistance unlike a warehouse in Melbourne that can do very little to help you. Buy from a real physical shop rather than online. We have the parts and skilled staff to fix the bike when it has any electrical problems.

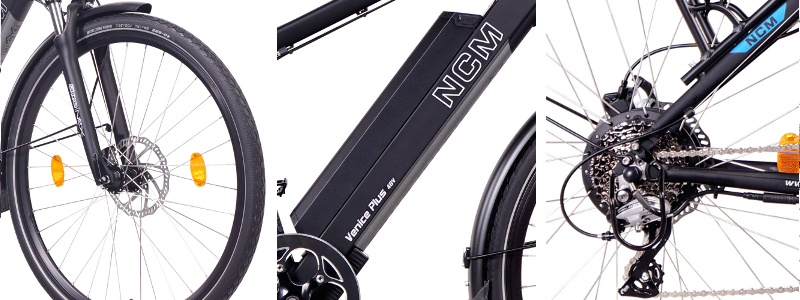

NCM Venice Plus 28"

One of our best-rated models, the NCM Venice Plus is built for comfort and style, perfect for everyday city riding and trekking. The motor and battery are integrated seamlessly into the aluminium frame design, avoiding a cluttered look while still offering top performance in the pedelec category. Featuring components from top established brands and a quality, responsive frame, this bike offers the smoothest experience for even the longest rides. It comes with all the features necessary for a lifestyle bike as well: a large cargo rack with 3-strap bungee for carrying panniers or strapping on any kind of bag; lights in the front and rear to illuminate you and the road; mudguards, a bell, and a kickstand. The NCM Venice Plus is a very capable and truly versatile E-bike.

Adjustable handlebar & strong DeHawk battery

Ergonomic bicycle Grips
Confortable sitting posture
Easy handling of the components
Adjustable handlebar for a good driving position
All important controls easily accessible
supplied with 48V to deliver a high output power
over 750Wh capacity for a longer distance
reach up to 130km (depending on the conditions)
battery integrated in the frame for better aesthetics
easily removable battery so you can charge it anywhere
A built-in USB port with 5V to charge mobile phones

Safe braking performance

Front Brake:

Reliable hydraulic disc brake system. The 180 mm brake disc ensures powerful and safe braking at all speeds.

Rear Brake:

Reliable hydraulic disc brake system from Tektro. The 160 mm brake disc ensures powerful and safe braking at all speeds.

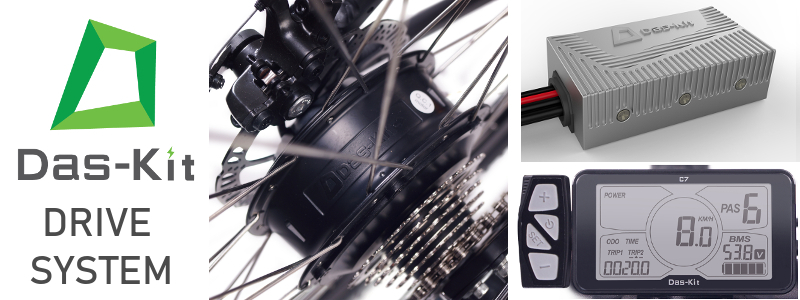

Das-Kit System

Das-Kit system with a high-contrast LC display provides all important information at a glance and can also be read easily in direct sunlight. The LC display gives good feedback, is extremely robust and easy to use.
The additional power can be individually controlled via six support levels.
It is protected against dirt and splash water.

The rear engine delivers a full torque up to 55 Nm with 250W rated power and 48V voltage.

A large display shows all necessary settings.

6 support levels and a pushing aid of up to 6km/h are adjustable.

The display's control buttons are deliberately placed on the left side - close to the left hand - so the driver can easily switch between support levels or displays without having to lift his hand off the handlebars.

In order to ensure our high quality standard, our bicycles are subjected to a functional test at the factory. This can lead to dust deposits on the tyres and the seat post. Our bikes are only delivered pre-assembled, a final fine adjustment and inspection by the buyer or a third party is necessary (costs incurred for this cannot be covered). Before driving, please check all screws for strength and carry out a fine adjustment of the gears and brakes. Check the tyre pressure. Depending on the bicycle model, the final assembly and inspection of the components should take between 60 and 90 minutes. Comparison

The brand introduces itself:

NCM Bikes, founded in 2014, has quickly become one of the largest pedelec and e-bike brands in Europe with the goal of expanding the market significantly in the near future. NCM is the perfect brand to start your pedelec experience whether you are an avid cyclist or a relative newcomer, we are committed to providing you with a range of high quality.. Our innovative technologies ensure that we can differentiate ourselves from the competition and continue to offer the latest technologies. Our goal is to help improve the environment through an friendly driving experience and the promotion of a fun and active lifestyle.

Specs

General Information

Weight: 28”= 27kg
Type: E-Trekking
Wheel size: 28"
Load capacity: Max. 125kg
Maximum speed: 25km/h

Electric parts

Motor: Das-Kit, X15 Rear-drive motor, 48V 250W, 25km/h
Controller: Das-Kit, CT5-I5, 48V 15A
Charger: 48V 3A included (round plug) DC483AU
Battery: DEHAWK I5-4816H,48V 16AH, 768WH, with USB port
Average range: 50-130km depending on assistance level
Display: LCD Das-Kit C7 display with many functions, 6km/h walk assist
Front/Rear Light: Spanninga, Kendo, 48V, 30 Lux over the bike battery / Spanninga, Solo with 2xAA batteries

Bike parts

Frame: Alu. 6061, 28"*480MM
Handelbar: Promax MA579 adjustable
Fork: Suntour, NEX 28”
Brake Levers: Tektro, with brake sensors on both sides
Brakes F/R: Tektro hydraulic Disc Brakes
Chain derailleur: Shimano, Altus M310, 8 speed
Crank set: Prowheel, OUNCE-248AC, 48T
Gear shift: Shimano, Acera M360, 8 speed
Pinion: 8-speed screw ring, 11-32T
Tyre: Schwalbe Marathon 28"*1.5 700C black
Saddle: Selle Royal, gel saddle, brown (imitation leather)
Seatpost: Promax, SP-884, with suspension, 27.2*300MM
Handles: Selle Royal, brown (imitation leather)
Pedals: Wellgo, B087, black

Warranty

1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
2 year warranty on the bike frame
Apart from manufacture defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
